MAXIMISE
YOUR RETURNS


ACROSS
ALL SEASONS


DISCOVER FUTURE READY TRACKING

Daily East to West tracking of the sun which optimises your daily yield over morning, afternoon and evening.

First and foremost function that every tracker performs. Asun 2 Axis Tracker does this too, but then, it’s not the only thing that it does to maximse yield.

It also tracks North to South, on account of the seasonal shift in sun’s path, making a big difference in winter months.

Single axis trackers lack the capability, citing cost and design complexities. A reason for performing lower than even fixed tilt during some months.

For bifacial use, panel array design of most trackers catches only residual solar radiation bouncing off the ground.

Asun 2 Axis Tracker does better. It’s panel configuration can also catch radiation scattered from panel to panel, thus making the most of bifacial modules.

2 AXIS PERFORMANCE AT SINGLE AXIS COST

Performance of Horizontal Mount Single Axis Trackers is known to fall significantly during winter months, because while the modules are still moving East to West during the day but the Sun’s path has changed along the North-South axis, thus the angle of incidence is nowhere near normal as intended.

Asun 2 Axis Tracker provides a daily tilt along the North-South axis, accounting for seasonal change in sun’s path, in addition to daily East-West movement morning to evening, thus tracking the sun optimally at all times, across seasons and maintaining near perpendicular angle of radiation incidence on solar modules. The result - higher yield and higher returns.

Click to see 2 Axis Tracker in action

Lower Investment

For a given generation target, Asun 2 Axis Tracker enables lower DC loading, resulting in savings on module and BoS costs.

Higher Yield, Lower LCoE

Higher yield throughout the year as compared to any other MMS coupled with optimised capital cost translates to lower LCoE.

Improved IRR

Higher yields and competitive costs mean improved project economics. Get better returns on your investment with Asun.

UNMATCHED BI-FACIAL PERFORMANCE

Dual-axis tracker systems with Bi-facial modules have the potential to out-perform other module/mounting configurations at high latitudes, where low solar angle-coincidence favors dual-axis tracking with added benefit of the reflectivity from snow in winters.

Data from dual-axis experimental systems has demonstrated that bifacial modules produced 14 percent more yield in a year and as much as 40 percent during the peak winter months. These gains are in addition to the estimated 35-40 percent energy gains of a dual-axis tracker relative to a fixed-tilt system.*

Asun 2 Axis tracker does better

Gap between panels allows for more radiation to bounce off the ground below the tracker

Better by design

Radiation reflected off the top surface of one panel captured by bottom surface of the next

* Refer to the Report in the downloads section “Performance of Bifacial Photovoltaic Modules on a Dual-Axis Tracker in a High-Latitude, High-Albedo Environment”

JOURNEY OF A DESIGN INNOVATION

Designed in collaboration with IIT, Delhi (Indian Institute of Technology), the first prototype and the first pilot project commissioned a few months later, are both operational incident free for over two years now.

Real time compararitive data captured for the three tyes of installations: Fixed Tilt, Horizontal Mount Single Axis Tracker and of course, the 2 Axis Tracker at the same location, validates the concept eloquently.

2019
Pilot Project
Commissioned
2020
Patents Filed
for 30 Countries
2021
Design Regisration
& U.S. Patent Granted
2022
Patent Granted
for Canada
2022
First Commercial
Project Completed
2023
Order book for
10+ MW

VALIDATED BY PERFORMANCE

Data collected for three types of installations at the same location in Uttarakhand, shows consistently higher performance of the Asun 2 Axis Tracker.

location:

Roorkee, india

data type:

DAILY GENERATION

SAMPLE:

76.86 KW

PV MODULES:

SAME MAKE

duration:

CALENDAR YEAR

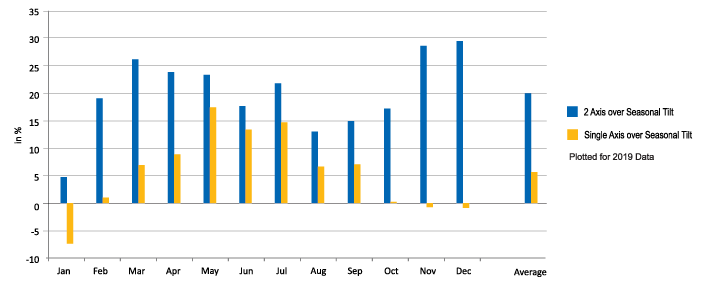

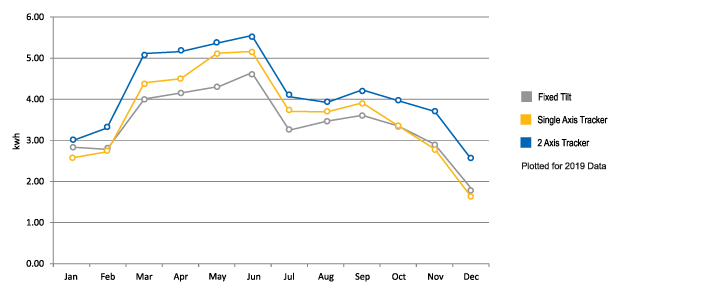

MONTHLY YIELD COMPARISON
INCREASE IN YIELD/FIXED TILT

HIGHER PERFORMANCE ACROSS INDIA

From Northern most location in Leh to the Southern most states, Asun 2 Axis Tracker once again promises a gain in yield that can change the project economics of your installation. Click on the location dots to see yield figures.

docts

Hanle, Leh

Gain (SAT over FT) 17%

Gain (2-AT over FT) 23%

docts

Bhatinda, Punjab

Gain (SAT over FT) 9%

Gain (2-AT over FT) 19%

docts

Roorkee, Uttarakhand

Gain (SAT over FT) 7%

Gain (2-AT over FT) 19%

docts

Sirsa, Haryana

Gain (SAT over FT) 7%

Gain (2-AT over FT) 19%

docts

Bhadla, Rajasthan

Gain (SAT over FT) 10%

Gain (2-AT over FT) 20%

docts

Raghanesda, Gujarat

Gain (SAT over FT) 10%

Gain (2-AT over FT) 20%

docts

Ambernath, Maharashtra

Gain (SAT over FT) 12%

Gain (2-AT over FT) 20%

docts

Ghattu, Telangana

Gain (SAT over FT) 14%

Gain (2-AT over FT) 21%

docts

Kurnool, Andhra Pradesh

Gain (SAT over FT) 11%

Gain (2-AT over FT) 22%

docts

Pavagada, Karnataka

Gain (SAT over FT) 11%

Gain (2-AT over FT) 21%

docts

Karindalam, Kerala

Gain (SAT over FT) 12%

Gain (2-AT over FT) 20%

docts

Ambalathara, Kerala

Gain (SAT over FT) 14%

Gain (2-AT over FT) 19%

docts

Kamuthi, Tamilnadu

Gain (SAT over FT) 13%

Gain (2-AT over FT) 20%

docts

Deogarh, Orissa

Gain (SAT over FT) 10%

Gain (2-AT over FT) 19%

docts

Rewa, Madhya Pradesh

Gain (SAT over FT) 10%

Gain (2-AT over FT) 19%

docts

West Medinipur, West Bengal

Gain (SAT over FT) 8%

Gain (2-AT over FT) 19%

docts

Imphal, Manipur

Gain (SAT over FT) 10%

Gain (2-AT over FT) 23%

* Results from an In-house simulation study. Click here to request report.

CHECK OUT THE SIMULATION RESULTS

A gain of 20% or more over fixed tilt, across locations between Arctic and Antarctic circles. Most viable and effective solution for locations above the Tropic of Cancer and below the Tropic of Capricorn. Click on the location dots to see yield figures.

docts

Cafayate, Argentina

Gain (SAT over FT) 11%

Gain (2-AT over FT) 22%

docts

Pirapora, Brazil

Gain (SAT over FT) 14%

Gain (2-AT over FT) 25%

docts

Nova Olinda, Brazil

Gain (SAT over FT) 14%

Gain (2-AT over FT) 24%

docts

Viesca, Mexico

Gain (SAT over FT) 16%

Gain (2-AT over FT) 26%

docts

San Bernardino, CA, USA

Gain (SAT over FT) 11%

Gain (2-AT over FT) 25%

docts

Nye County, NV, United States

Gain (SAT over FT) 10%

Gain (2-AT over FT) 25%

docts

Sarnia, Canada

Gain (SAT over FT) 8%

Gain (2-AT over FT) 22%

docts

Arnprior, Canada

Gain (SAT over FT) 8%

Gain (2-AT over FT) 23%

docts

Noor, Morocco

Gain (SAT over FT) 8%

Gain (2-AT over FT) 22%

docts

Montalto Di Castro, Italy

Gain (SAT over FT) 7%

Gain (2-AT over FT) 22%

docts

Shotwick, UK

Gain (SAT over FT) 12%

Gain (2-AT over FT) 22%

docts

Cestas, France

Gain (SAT over FT) 15%

Gain (2-AT over FT) 26%

docts

Meuro, Germany

Gain (SAT over FT) 15%

Gain (2-AT over FT) 26%

docts

Nikopol, Ukraine

Gain (SAT over FT) 8%

Gain (2-AT over FT) 22%

docts

Sakakah, Saudi Arabia

Gain (SAT over FT) 16%

Gain (2-AT over FT) 26%

docts

Benban, Egypt

Gain (SAT over FT) 11%

Gain (2-AT over FT) 22%

docts

Seih Al-Dahal, UAE

Gain (SAT over FT) 12%

Gain (2-AT over FT) 21%

docts

Tengger Zhongwei, China

Gain (SAT over FT) 9%

Gain (2-AT over FT) 22%

docts

Dau Tieng, Vietnam

Gain (SAT over FT) 11%

Gain (2-AT over FT) 19%

docts

Bungal, Australia

Gain (SAT over FT) 13%

Gain (2-AT over FT) 22%

docts

Kalkbult, South Africa

Gain (SAT over FT) 16%

Gain (2-AT over FT) 24%

* The results are from In-house simulation study.Click here to request report.

DISCOVER THE 2 SINGLE AXIS VARIATIONS

HORIZONTAL MOUNT SINGLE AXIS

Slashes land requirement by upto 25%

With tracker tables aligned along the E/W axis rather than N/S as in prevalent single axis designs, the pitch between the trackers is reduced, thus allowing for higher land usage.

Great reduction in structure cost

The highly optimized structure design of the tracker, allows even greater cost reduction by eliminating components and movement drives required for N/S movement.

TILTED SINGLE AXIS

Offers higher land use

Even with this adaptation to Single Axis with fixed tilt operation, the tracker once again offers the advantage of higher land use, depending on the location and the angle of tilt required.

Competitive cost with higher yield

With the advantage of an optimized structure with lower tonnage per MW, it delivers higher yield, especially at locations where seasonal N/S variation in sun’s path is significant.

Click to see 2 Single Axis Tracker variants in action

prepare to embrace the change

Asun 2 Axis Tracker is a product built from the design brief upwards. A brief based on first hand experience with the single axis design and it’s inherent shortcomings. Added to that are astute market insights and industry trends. No wonder, it has future ready tech built into it’s DNA.

Highly optimised structure, resulting in lower structural weight and highly competitive cost

Back tracking feature available along both the axes - East-West and North-South

Decentralised design for ease of installation and higher plant availability

Modular configuration results in greater terrain adaptability.

Programable Automatic stow position in high wind conditions

Designed to withstand wind speeds reaching upto 170 kmph

Panel array configuration allows for maximising the bifacial module efficiency

Self-lubricating polymer bearings for minimal maintenance

IoT Ready with features like remote monitoring, self-diagnostics and trouble shooting

Increases yield by upto 28% depending on location & climatic conditions

ABOUT THE COMPANY

Asun Solar Power Private Limited was incorporated in the year 2013 with the objective of providing best in
class Rooftop EPC solutions. As the fastest growing Rooftop EPC company in India, Asun forged alliances with
leading national and global players in the domain.

Soon after, Asun ventured into providing O&M and solar asset management solutions for solar energy plants
across India, followed by investments in nearly 9MW of self owned projects as an IPP.

Based on first hand experience with IPP scale project economics and Single Axis Trackers of European origin,
Asun Trackers Private Limited was formed in 2015, with the objective of entering the solar tracking domain as
a product development company.

A design collaboration with IIT Delhi followed by a successful incubation as a technical startup with FITT,
Delhi, Asun 2 Axis Tracker is the first successful innovation by the company, that holds disruptive potential
to change the market dynamics for trackers.

Group Companies

Affiliations & Recognition

meet the team making it work

Varun Sachar

Founder & CEO

40 years of experience in Sales & Marketing with national & International companies. An independent developer and EPC operator in solar domain for past six years.

Dr. Sudipto Mukherjee

Technical Director

Academic/industrial experience of over 27 years. Faculty Dean at IIT Delhi. Associated with Asun Trackers since 2016. He is a co-inventor of 2 Axis Tracker.

Nilanjan Sen

Design Lead

A machine and product design consultant with a B.Tech from IIT Delhi, and an M.S. from Pennsylvania State University. He is a co-inventor for 2 axis tracker.

Nikash Sachar

Co-founder

Nikash joined Asun with experience with Solar Companies in Canada. He completed his undergrad education from UK and a masters in Business Innovation.
